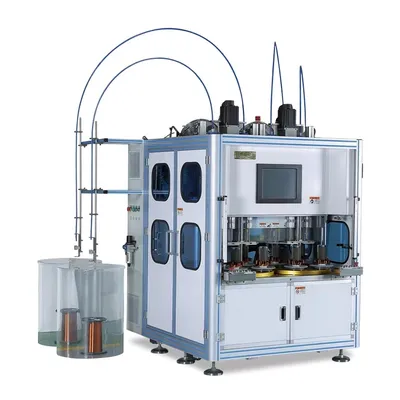

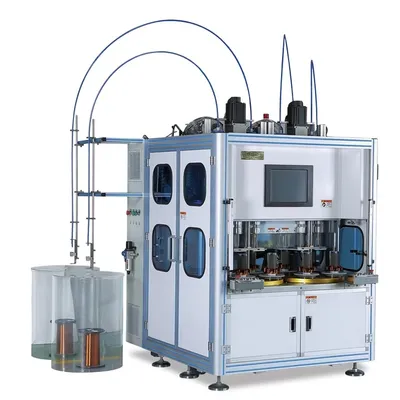

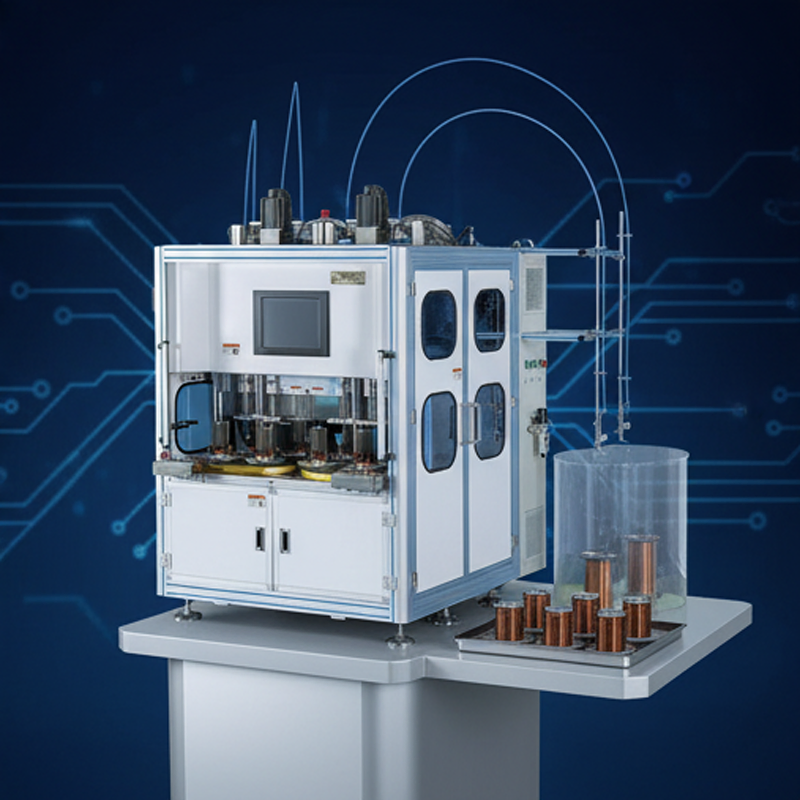

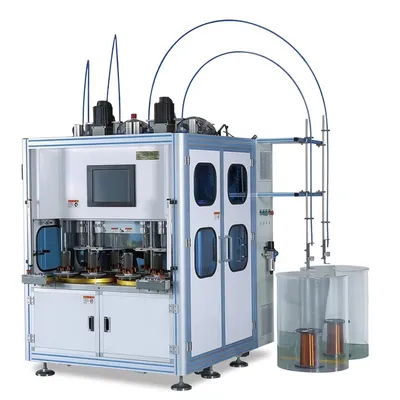

4-Head 8s Dual-Turntable Winder High-Yield Motor Coiling
4.0InStock Source-listed auditby Guangdong Zongqi Automation Co., Ltd.
₹83,50,000≈ $100,000 · indicative, confirm with supplier
Payment
T/T
Port
Shunde, China
Incoterms
FOB, EXW
Description
4-Head 8s Dual-Turntable Winder High-Yield Motor Coiling, Find Details and Price about Coiling Winder High-Yield from 4-Head 8s Dual-Turntable Winder High-Yield Motor Coiling - Guangdong Zongqi Automation Co., Ltd.
Specifications
Power10kw
OriginGuangdong, China
Weight2800kg
HS Code8479899990
Model NO.LRX4/8-100
Air Pressure0.6-0.8MPa
Power Supply380V Three-Phase Four-Wire System 50/60Hz
Specification(L) 2400* (W) 1680* (H) 2100mm
Bridge Line Processing Time4s
Turntable Transposition Time1.5s
Maximum Stator Inner Diameter100mm
Adapt to The Stator Stack Thickness
