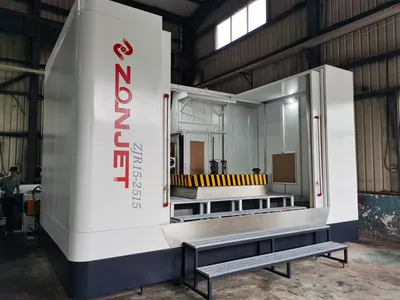

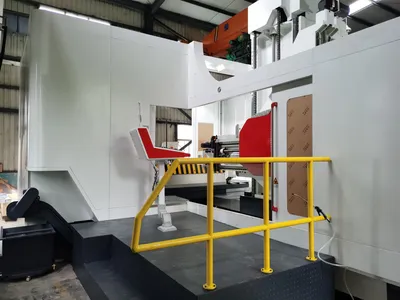

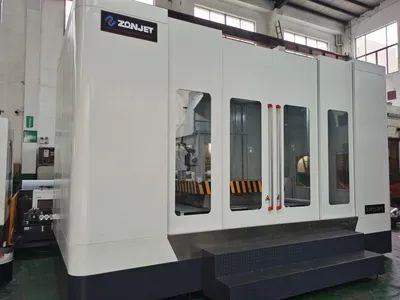

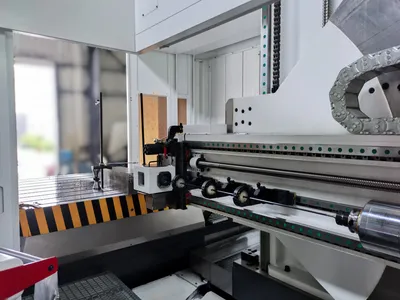

Drilling Inclined Hole Fanuc 6 Axis Deep Hole Drilling Machine with CE (ZJR15-2315)

Drilling Inclined Hole Fanuc 6 Axis Deep Hole Drilling Machine with CE (ZJR15-2315). Six-Axis CNC Precision: Advanced FANUC 0i-MD system with 6-axis servo motors for high-precision deep-hole drilling and milling. Versatile Deep Hole Processing: Handles hole diameters 3-35mm and depths up to 1500mm, ideal for molds, hydraulics, and aerospace. Inclined Hole Capability: Main axis tilts 15 degrees up and 25 degrees down to drill complex inclined holes efficiently. High Load Capacity: Supports up to 20 tons on the CNC index table with a large working range of 2300x1500mm. Optimized Cooling System: Remote-controlled cooling adjusts flow and pressure (2-15 MPa) to optimize results based on material. International Certifications: Compliant with CE, GS, and ISO 9001 standards, ensuring safety and quality for global markets. Customization Options: Offers full customization, minor customization, and flexible options based on customer samples or designs. Reliable After-Sales Support: FANUC system ensures punctual after-sales service with stable performance and convenient operation.
